Split Hierarchy with M-M(many to many) relationships in Microstrategy:

Split Hierarchy with M-M relationships:

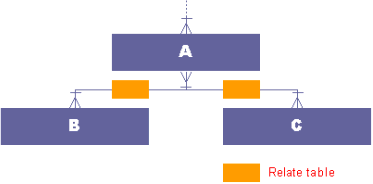

Explanation	A split hierarchy is one - that at the lowest level - has more than one child. The schema looks like the following diagram.
Problem	Reports that contain B or C will ignore filters on the other.
Recommendation	MicroStrategy recommends to have only one child at the lowest level.
Workaround / Solution	Make B and C parents of a new compound attribute using both columns as its ID with A B and C as its parents.

Comments

MicroStrategy URL API Parameters

MicroStrategy URL Structure The following table summarizes the root URL structure used for every request to MicroStrategy Web. Environment Main Application URL Administration URL J2EE http://webserver/MicroStrategy/servlet/mstrWeb http://webserver/MicroStrategy/servlet/mstrWebAdmin .NET http://webserver/MicroStrategy/asp/Main.aspx http://webserver/MicroStrategy/asp/Admin.aspx Every request sent to MicroStrategy Web calls a central controller. Parameters are appended to Main.aspx or mstrWeb (in a .NET and J2EE environment, respectively) to indicate to the controller how the request should be internally forwarded and handled. The following examples show a URL for accessing a MicroStrategy folder when the user does not have an existing session. The URL contains not only the parameters needed to connect to MicroStrategy Web, but also the parameters needed to log on and create a session. J2EE environment: <a href="http:...

Clean uninstall MicroStrategy Analytics Enterprise using the Uninstallation Cleanup Utility

How to clean uninstall MicroStrategy Analytics Enterprise using the Uninstallation Cleanup Utility CONSIDERATIONS/GUIDELINES : This Uninstallation Cleanup Utility is designed to remove the obsolete or leftover services, files and registries after uninstalling MicroStrategy products. The goal of this cleanup utility is to remove the leftover files and registries after uninstallation to make the machine "cleaner" for a second time installation (it can solve some known downgrade installation issues). The basic assumption for removing files is that the user installed MicroStrategy in a path that contains the string "MicroStrategy" . If not, the files and certain registry keys will not be removed. Using the cleanup utility incorrectly can cause system-wide problems that may require re-installation of the Operating System. This utility should always be tested in a test environment before being run in a production environment. Lin...

Create an alert-based subscription in MicroStrategy Distribution Services

Create an alert-based subscription in MicroStrategy Distribution Services on Web Subscription to a report or Report Services document which will be executed when a certain conditional threshold is met based on another executing report. For example, a scheduled report executes which shows the Revenue by day for the past week. If the Revenue on any one day falls below a certain value, a subscription to another report or Report Services document can be triggered and delivered to a recipient. An alert based subscription can only be created directly on a report; however, another report or Report Services document can be delivered when the alert based subscription is triggered. Note: you need a grid report to create an alert and you cannot create if you want to create on a document with text boxes. The following example will walk through the basic steps on how to setup a subscription based on an alert like this: Follow the brief steps bel...

No 'Alert' option appear when trying to create an alert-based subscription in MicroStrategy Distribution Services

The 'Alert' option does not appear when attempting to create an alert-based subscription in MicroStrategy Distribution Services In MicroStrategy Distribution Service 9.x and 10.x, and 11.x versions it is possible to create an alert-based subscription. When right-clicking the metric header of a report in MicroStrategy Web 9.0.x, the 'Alerts' option does not appear: Cause : This issue occurs because the user attempting to create the alert does not have all of the necessary privileges on alerts. Fix : In order to create an alert-based subscription, the following privileges are required: In order ti get permissions to create alerts the user should be given the following privileges by the admin: New Version of Microstrategy 11.x: Server- Distribution: Older Versions of Microstrategy 9.x, 10.x etc..: Web Reporter > Web user Web Analyst > Web create alert ...

OLAP features in Microstrategy

OLAP features in Microstrategy MSTR OLAP Services uses Intelligent Cube Technology—an in-memory version of report data that can 1 About MicroStrategy OLAP Services can be manipulated by the MicroStrategy Analytical Engine. MicroStrategy Desktop, Web, and Office users can slice and dice data in reports within Intelligent Cubes without having to re-execute SQL against the data warehouse. Many of the standard OLAP features that MicroStrategy provides out of the box, such as: Page-by Pivoting Sorting Subtotals Banding Aliasing Outline mode Thresholds etc.. With an OLAP Services license, user can perform additional OLAP analysis, using the following features: Displaying data on the fly: dynamic aggregation, page Creating metrics on-the-fly: derived metrics, Defining attribute elements on-the-fly: derived elements, Filtering data on the fly: view filters and metric filters, Importing data as an Intelligent Cube

Microstrategy Custom number formatting symbols

Custom number formatting symbols If none of the built-in number formats meet your needs, you can create your own custom format in the Number tab of the Format Cells dialog box. Select Custom as the Category and create the format using the number format symbols listed in the table below. Each custom format can have up to four optional sections, one each for: Positive numbers Negative numbers Zeros Text Each section is optional. Separate the sections by semicolons, as shown in the example below: #,###;(#,###);0;"Error: Entry must be numeric" For more examples, see Custom number formatting examples . To jump to a section of the formatting symbol table, click one of the following: Numeric symbols Character/text symbols Date and time symbols Text color symbols Currency symbols Conditional symbols Numeric symbols For details on how numeric symbols apply to the Big Decimal data type, refer to the Project Design Guide . ...

Microstrategy Attributes relationship using a relationship table

Relationship tables in Microstrategy Relate tables store information about the relationship between two attributes when one a parent of the other or vice-versa.. Relate tables contain the ID columns of two or more attributes, which will define associations between them. Relate tables are often used to create relationships between attributes that have a many-to-many relationship to each other. With attributes whose direct relationship is one-to-many—in which every element of a parent attribute can relate to multiple elements of a child attribute—you define parent-child relationships by placing the ID column of the parent attribute in the lookup table of the child attribute. The parent ID column in the child table is called a foreign key. This technique allows you to define relationships between attributes in the attributes’ lookup tables, creating tables that function as both lookup tables and relate tables as shown in the following diagram: ...

Prompt-in-prompt(Nested Prompts) in Microstrategy

Prompt-in-prompt(Nested Prompts) in Microstrategy Nested prompts allows you to create one prompt based on the other and other bases on another, nested prompts allows us to prompt the highest level(Like year) to middle level(like Quarter, then to the low level(like Month). Here you can see how to create a 3-level deep nested prompt that will prompt the user to select a year, then a quarter within that year, then a month within that quarter. Prompt-in-prompt is a feature in which the answer to one prompt is used to define another prompt. This feature is only implemented for element list prompts . The following procedure describes how to achieve this: Create the highest level filter. This is a filter which contains a prompt on an attribute element list. Create a filter on the attribute "Year." Click "prompt on attribute element list" and click "Next" through the rest of the screens to accept the default values. Do not set any additio...

Joint child relationships in MSTR

Joint child relationships Some attributes exist at the intersection of other indirectly related attributes. Such attributes are called joint children. Joint child relationships connect special attributes that are sometimes called cross-dimensional attributes, text facts, or qualities. They do not fit neatly into the modeling schemes you have learned about thus far. These relationships can be modeled and conceptualized like traditional attributes but, like facts, they exist at the intersection of multiple attribute levels. Many source systems refer to these special attributes as flags. Therefore, if flags are referenced in your source system documentation, these are likely candidates for joint child relationships. Joint child relationships are really another type of many-to-many relationship where one attribute has a many-to-many relationship to two otherwise unrelated attributes. For example, consider the relationship between three attributes: Promotion, Ite...

Case functions Microstrategy

Ca se functions Microstrategy Case functions return specified data in a SQL query based on the evaluation of user-defined conditions. In general, a user specifies a list of conditions and corresponding return values. Case This function evaluates multiple expressions until a condition is determined to be true, then returns a corresponding value. If all conditions are false, a default value is returned. Case can be used for categorizing data based on multiple conditions. This is a single-value function. Syntax Case ( Condition1 , ReturnValue1 , Condition2 , ReturnValue2 ,..., DefaultValue ) Example Case(([Total Revenue] < 300000), 0, ([Total Revenue] < 600000), 1, 2) sum(Case (Day@DESC in (“Sat”,”Sun”), Sales, 0) {~+} Sum(Case(Category@DESC In("Books","Electronics"),Revenue,0)){~+} CaseV (case vector) CaseV evaluates a single metric and returns different values according to the results. It can be used to perfo...
