Recursive Hierarchies in Microstrategy

Recursive Hierarchies:

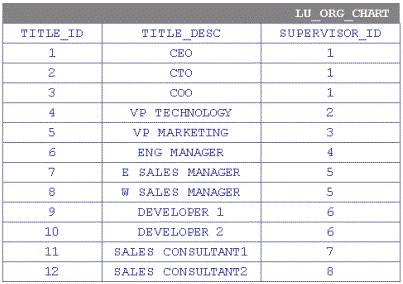

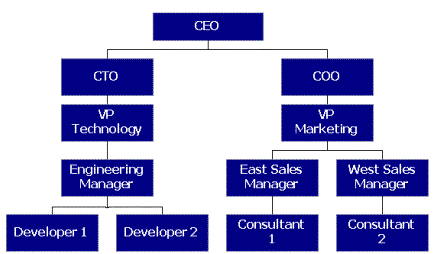

Explanation	A recursive hierarchy or recursive dimension, usually consists of elements that point to other elements pertaining to the same attribute with a parent-child relationship. A classic example is an organization chart: This information can be stored in a recursive fashion using only one table with two ID columns:
Problem	Recursive hierarchies are not supported by MicroStrategy
Recommendation	Explode the schema from recursive to dimensional

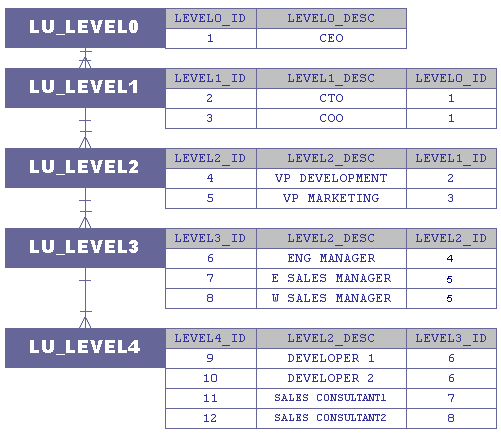

Workaround / Solution	The recursive hierarchy table has to be split into several tables, one for each level in the hierarchy (turning it into a traditional snowflake schema). A physical snapshot of the solution is: Each attribute has a 1-M relationship with its child.

Comments

Microstrategy Custom number formatting symbols

Custom number formatting symbols If none of the built-in number formats meet your needs, you can create your own custom format in the Number tab of the Format Cells dialog box. Select Custom as the Category and create the format using the number format symbols listed in the table below. Each custom format can have up to four optional sections, one each for: Positive numbers Negative numbers Zeros Text Each section is optional. Separate the sections by semicolons, as shown in the example below: #,###;(#,###);0;"Error: Entry must be numeric" For more examples, see Custom number formatting examples . To jump to a section of the formatting symbol table, click one of the following: Numeric symbols Character/text symbols Date and time symbols Text color symbols Currency symbols Conditional symbols Numeric symbols For details on how numeric symbols apply to the Big Decimal data type, refer to the Project Design Guide . ...

Case functions Microstrategy

Ca se functions Microstrategy Case functions return specified data in a SQL query based on the evaluation of user-defined conditions. In general, a user specifies a list of conditions and corresponding return values. Case This function evaluates multiple expressions until a condition is determined to be true, then returns a corresponding value. If all conditions are false, a default value is returned. Case can be used for categorizing data based on multiple conditions. This is a single-value function. Syntax Case ( Condition1 , ReturnValue1 , Condition2 , ReturnValue2 ,..., DefaultValue ) Example Case(([Total Revenue] < 300000), 0, ([Total Revenue] < 600000), 1, 2) sum(Case (Day@DESC in (“Sat”,”Sun”), Sales, 0) {~+} Sum(Case(Category@DESC In("Books","Electronics"),Revenue,0)){~+} CaseV (case vector) CaseV evaluates a single metric and returns different values according to the results. It can be used to perfo...

MicroStrategy URL API Parameters

MicroStrategy URL Structure The following table summarizes the root URL structure used for every request to MicroStrategy Web. Environment Main Application URL Administration URL J2EE http://webserver/MicroStrategy/servlet/mstrWeb http://webserver/MicroStrategy/servlet/mstrWebAdmin .NET http://webserver/MicroStrategy/asp/Main.aspx http://webserver/MicroStrategy/asp/Admin.aspx Every request sent to MicroStrategy Web calls a central controller. Parameters are appended to Main.aspx or mstrWeb (in a .NET and J2EE environment, respectively) to indicate to the controller how the request should be internally forwarded and handled. The following examples show a URL for accessing a MicroStrategy folder when the user does not have an existing session. The URL contains not only the parameters needed to connect to MicroStrategy Web, but also the parameters needed to log on and create a session. J2EE environment: <a href="http:...

Personalizing file locations, email and file subscriptions using macros in Microstrategy

Personalizing file locations MSTr allows to dynamically specify the File Location and Backup File Location in a file device using macros. For example, if you specify the File Location as C:\Reports\{&RecipientName}\ , all subscriptions using that file device are delivered to subfolders of C:\Reports\ . Subscribed reports or documents for each recipient are delivered to a subfolder with that recipient’s name, such as C:\Reports\Jane Smith\ or C:\Reports\Hiro Protagonist\ . The table below lists the macros that can be used in the File Location and Backup File Location fields in a file device: Description Macro Date on which the subscription is sent {&Date} Time at which the subscription is sent {&Time} Name of the recipient {&RecipientName} User ID (32-character GUID) of the recipient {&RecipientID} Distribution Services add...

Custom Tooltips in Microstrategy developer and Web

Custom Tooltips in Microstrategy developer and Web The following table describes the macros you can use to customize graph tooltips in both MicroStrategy Developer and MicroStrategy Web: Macro Information Displayed {&TOOLTIP} All relevant labels and values associated with a graph item. {&GROUPLABEL} Name of the graph item's category. This value is often the graph item's attribute element information, as attributes are commonly used as the categories of graph reports. {&SERIESLABEL} Name of the graph item’s series. This value is often the graph item's metric name information, as metrics are commonly used as the series of graph reports. {&VALUE} The value of a given data point. {&XVALUE} The X-value of a data point. Only applicable to Bubble charts and Scatter plots. {&YVALUE} The Y-value of a data point. Only applicable to Bubble charts and Scatter plots. {&ZVALUE} The Z-value of a data point. Only applicable to Bubble charts and Scatter plots. {...

Apply or Pass-through functions in Microstrategy

Ap ply (Pass-Through) functions MSTR Apply functions provide access to functions or syntactic constructs that are not standard in MicroStrategy but are provided by various RDBMS systems.. Syntax common to Apply functions Apply Function Name ("expression with placeholders", Arg1, Arg2, Arg3, …ArgN) where: Apply Function Name – is a generic name used for the predefined pass-through functions described above expression with placeholders – is the string describing the actual expression or syntax that the engine uses while generating the SQL and which is sent to the RDBMS. The placeholders are represented by #0, #1, and so on. "#" is a reserved character for MicroStrategy. Arg – is an argument that replaces the parameter markers in the pattern. Arg1 replaces #0, Arg2 replaces #1, and so on. There are five pre-defined Apply functions to replace regular, predefined functions of the same type. For more details, cli...

Derived metric based on attribute values

Derived metric based on attribute values Here is how could create and display data correctly on using below simple steps. Create a report with Category, Subcategory and Revenue. Create New Metric in a report or VI. Case((Category@ID = 1), Revenue, 0) Booksand Name it as Revenue for where 2 is Category ID for "Books" Report will display result as below. Result for new metric is blank. Now to fix this create a new Derived metric on Category attribute first with formula as Max(Category) {~ } and calling Books Now Edit the "Revenue for Books metric and Replace Category@ID with this new Books metric formula would looks like this Case((Books = 1), Revenue, 0). Report result would now display as expected as shown below

Microstrategy "Error type: Odbc error. Odbc operation attempted

"Error type: Odbc error. Odbc operation attempted: SQLExecDirect. [HYT00:0: on SQLHANDLE] [MicroStrategy][ODBC Oracle Wire Protocol driver]Timeout expired" is shown when executing reports from Web When users are trying to execute some reports in MicroStrategy web in particular, they may receive the Error “SQL Generation Complete Index out of range” and “Timeout expired” error as shown below: Possible Causes: One possible cause is that the MicroStrategy Intelligence Server using a cached database connection that was already dropped by the RDBMS. To resolve this: Admin should delete the database connection caches and create a new DSNs in case they are sharing DSNs to connect to different databases. In addition, change the settings for the ‘Connection lifetime’ and the ‘Connection idle time out’. Follow the steps below to perform the mentioned changes and verify the report after each step and some of the settings require i-server r...

Email Subscription in Microstrategy

Create Email Subscription in Microstrategy Creates an email subscription. Do not include any leading or trailing spaces in the ANSWER parameters. This causes a SQL error and prevents the command from executing. Ex: CREATE EMAILSUBSCRIPTION "New Multi Users" FOR OWNER "administrator" SCHEDULE "Books Closed" CONTACTGROUP "TEST" CONTENT "Electronics Revenue by Region" IN FOLDER "\Public Objects\REPORTS\SUBJECT Areas\Sales and Profitability Analysis" IN PROJECT "MicroStrategy Tutorial" DELIVERYFORMAT HTML EXPIRATIONDATE NEVER EXPRIED FILENAME "file_name" SUBJECT "Test REPORT" MESSAGE "Please Test"; CREATE EMAILSUBSCRIPTION [ subscription_name ] [FOR OWNER login_name ] SCHEDULE schedule_name (ADDRESS address_name | USER user_name | CONTACT contact_name [ADDRESS contact_ address_name ] | CONTACTGROUP contact_group_name ) CONTENT ( report_or_document_name IN FOLDER loc...

mstrio – Python and R wrappers for the MicroStrategy

mstrio – Python and R wrappers for the MicroStrategy REST APIs Connecting to MicroStrategy Create a connection to the Intelligence Server using Connection() and  connect() in Python and R, respectively. Required arguments for the   Connection()  function are the URL for the MicroStrategy REST API server, MicroStrategy Intelligence Server username and password, as well as the MicroStrategy project name. By default, the  connect()  function anticipates your MicroStrategy Intelligence Server username and password. LDAP authentication is also supported. Use the optional argument  login_mode=16  in the  connect()  function for LDAP authentication. Extract data from cubes and reports To extract data from MicroStrategy cubes and reports, use the get_cube()  and  get_report() functions. Use...
